Configured around the project conditions
A converter-fed transformer for variable- and wide-frequency drive duties on offshore drilling platforms, engineered around frequency range, harmonics, load profile, temperature rise and insulation stress.
The final configuration is confirmed against supply conditions, load profile, installation space, environmental class and control interfaces.
Designed around frequency range, waveform and drive duty
A wideband transformer serves converter-fed or wide-frequency drive systems. In addition to offshore environmental requirements, its design must consider operating-frequency range, converter topology, harmonic spectrum, output waveform, duty cycle, cooling and insulation stress. A conventional power-frequency platform transformer is not a direct substitute.
- Minimum, rated and maximum operating frequency
- Converter topology, waveform and harmonic spectrum
- Continuous, cyclic or impact-load profile
- Temperature rise, cooling and insulation-stress review
Core technical parameters
- 01Supply
- Converter-fed / wide-frequency
- 02Application
- Offshore platform drive system
- 03Design inputs
- Frequency / waveform / load profile

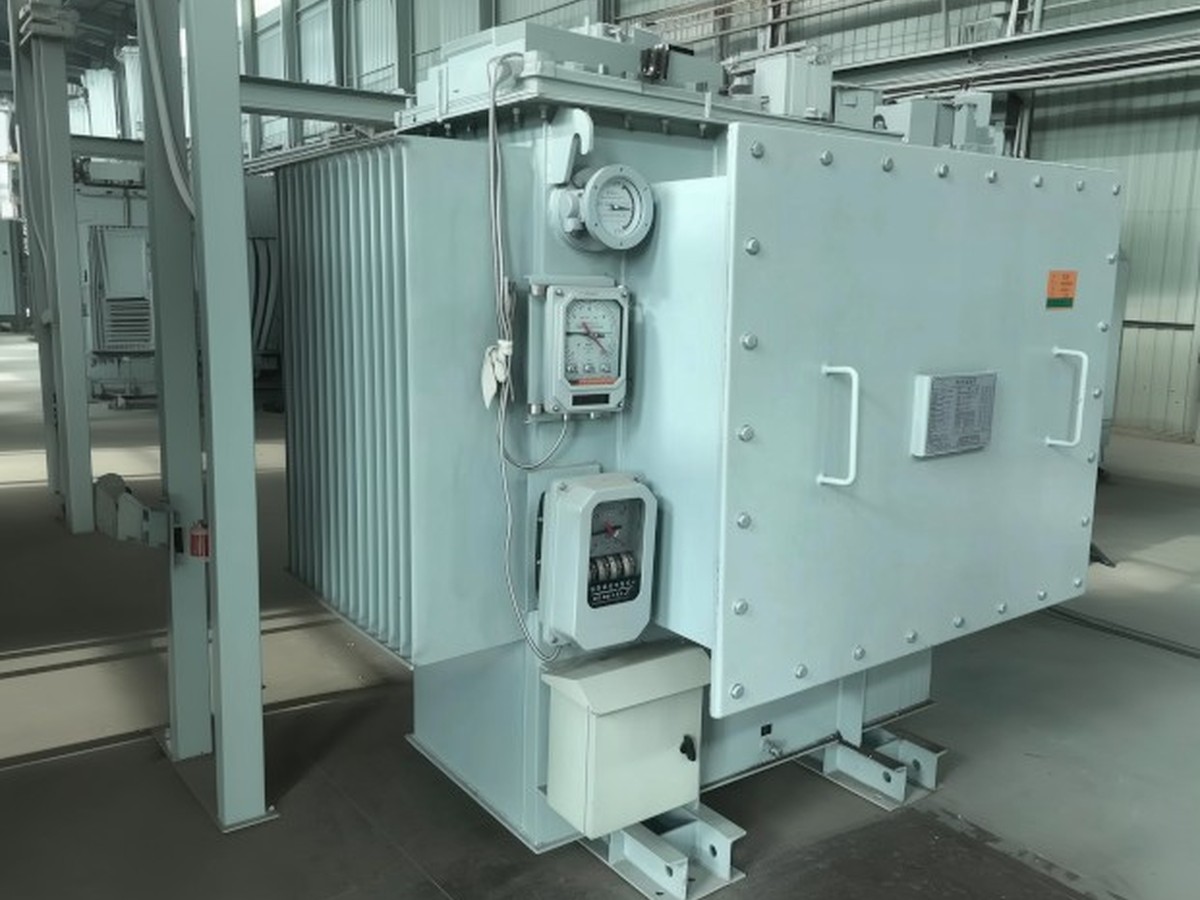

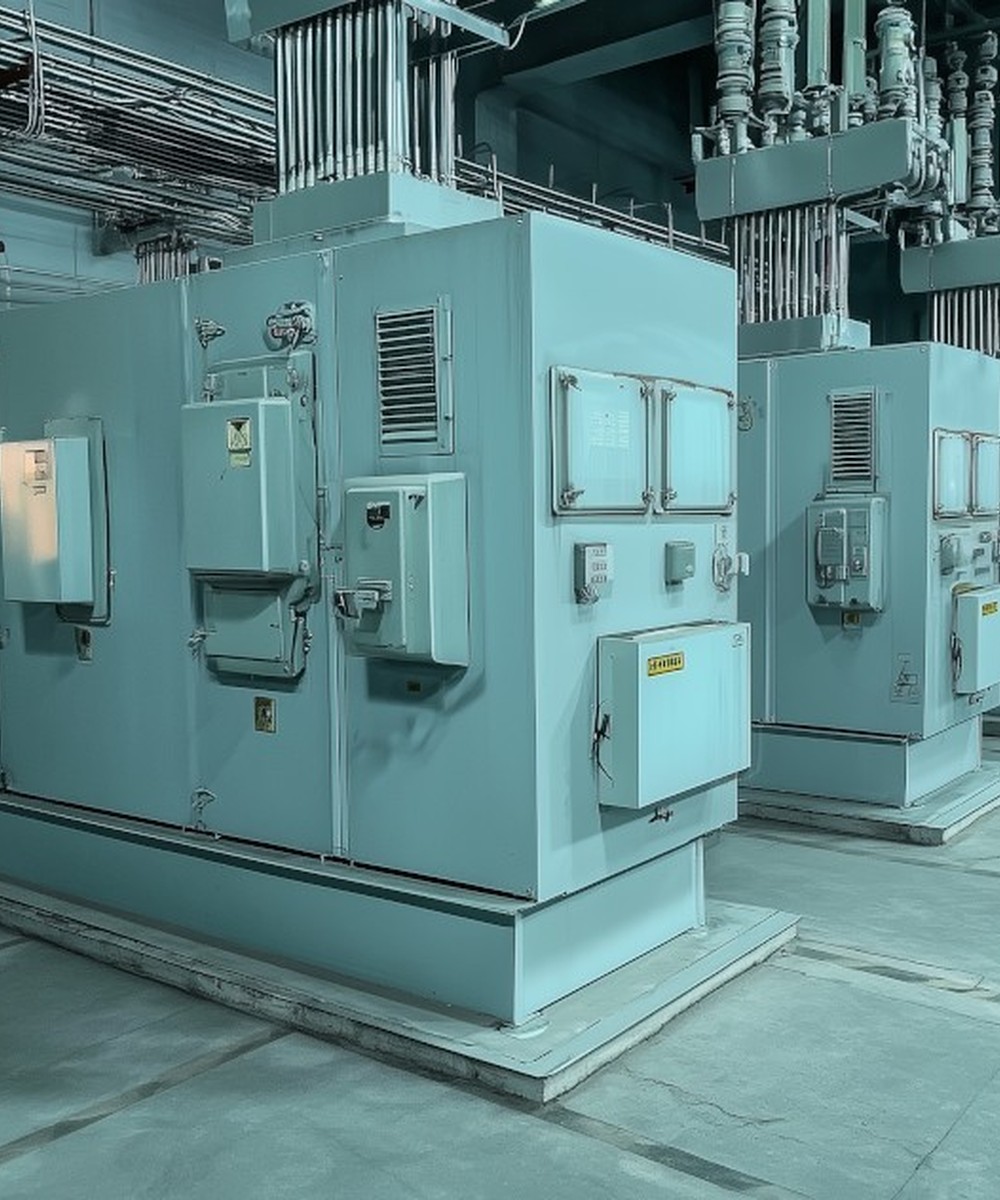

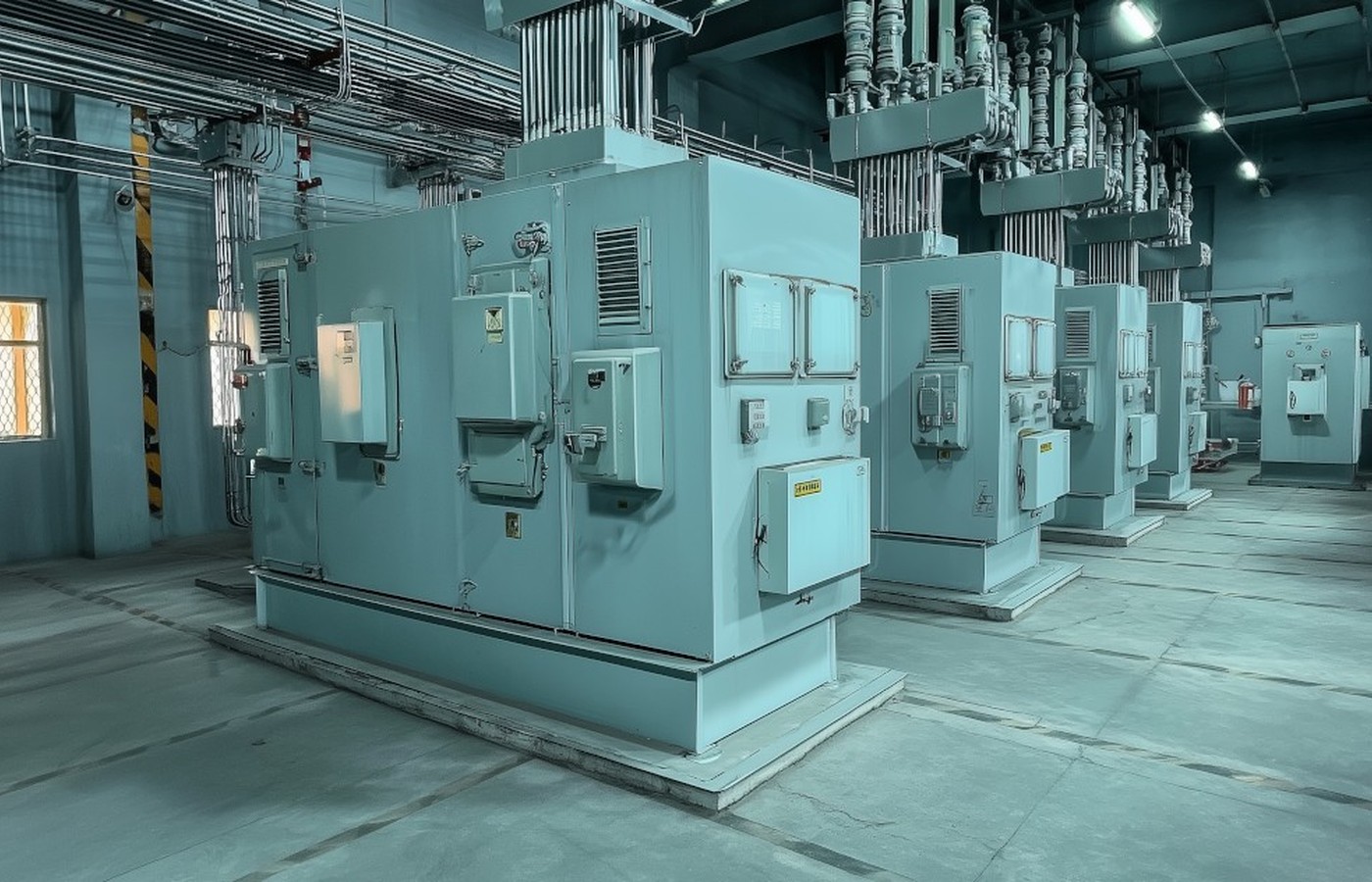

Manufacturing and equipment views
Bring the operating conditions to our engineers
Share voltage, power, load, installation environment and interface requirements so the team can define the configuration and supply boundary.
